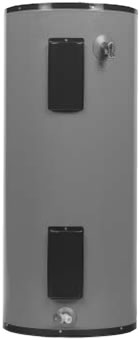

美國鷹牌熱水器80升家用電熱水器E61-30H-030DV

希望享受穩定可靠熱水器的家庭的理想選擇。

兩個加熱元件，4.5KW/240伏（如果需要其他功率和電壓的熱水器，請與我們聯系），效率最高

Dual Heating Elements, 4.5 KW/240 Volts (other wattages and voltages available) for maximum efficiency

有效防止熱量損失，降低能源成本的的不含氯氟烴的聚氨酯泡沫
Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs

抗腐蝕保護的Fused Ceramic Shield TankTM（熔融陶瓷盾板）內膽
Fused Ceramic Shield TankTM for anti-corrosion protection

工廠安裝的側面降溫減壓安全閥
Factory Installed Side Temperature & Pressure Valve

溫控器/高溫限制控制器，使得用戶能夠調節水溫，防止過熱
Thermostat/High Limit Control allows adjustment of water temperature while preventing overheat protection

內置電氣接線盒，便于熱水器的安裝
Built-In Electric Junction Box for convenient installation

非金屬，防腐蝕排污閥
Non-Metallic, Corrosion-Free Drain Valve

美國UL 174認證，1990美國電器節能法典(NAECA)認證，BOCA和美國采暖、制冷與空調工程師學會(ASHARE)90.1b-1992認證。所有型號均通過300 PSI試驗壓力和150 PSI工作壓力的檢測認證。
Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

• Fused Ceramic Shield Tank^TM（熔融陶瓷盾板）內膽
  堅固、厚實、耐用的藍鈷陶瓷經過871^oC高溫熔融在內膽內部表面上，形成防腐蝕內層，可靠保護和使用可達數年之久。
  Fused Ceramic Shield^TM
  A tough, thick durable coat of blue cobalt ceramic is fused to the tank’s interior surfaces at 1600^oF, forming a corrosion-resistant lining for years of dependable protection and use.

•

• 兩個加熱元件
  螺紋擰進，直接浸入近，4500瓦/240伏加熱元件，效率最高。如果需要其他種類的電源配置，請與我們聯系。
  Dual Heating Elements
  Screw-in, direct immersion, 4500-watt, 240-volt heating elements for maximum efficiency. Available in multiple wattages and voltages for every job.

• 不含氯氟烴的聚氨酯泡沫絕緣保溫層
  這種內膽環繞著厚實的不含氯氟烴的聚氨酯泡沫絕緣保溫層，將熱量保留在內膽內，節約能源。
  Non-CFC Foam Insulation
  The tank is surrounded by a thick coat of non-CFC polyurethane foam to trap heat inside the tank, saving energy.

• 內浸管
  將進入的冷水引入內膽底部，將熱水溫度混合稀釋作用降到最小程度。
  Dip Tube
  Carries cold inlet water deep into the tank to minimize temperature dilution of hot water.

• 降溫減壓安全閥
  位于熱水器側面，使得采用管道連接到排污口或建筑物外部更加簡便易行。也可提供頂部安裝的降溫減壓安全閥安裝孔，用于現場安裝降溫減壓安全閥。
  T&P Valve
  Conveniently located on the side of the tank to facilitate piping to a drain or external to the building. Also available with top T&P opening for field-installed top T&P valve.

• 3/4英寸通徑的水接頭
  位于頂部。
  3/4” Water Connections
  Located on top.

• 陽極棒
  頂部安裝，加強型陽極，加強對內膽的保護，延長內膽的使用壽命。
  Anode Rod
  Top-mounted, heavy duty anode for added tank protection, extending the life of the tank.

• 內置電氣接線盒
  位于頂部，使用方便的接線盒，適用于1/2英寸或3/4英寸導線管。
  Built-In Electric Junction Box
  Top-located, convenient junction box, ready for 1/2” or 3/4” conduit.

• 溫控器/高溫限制控制器
  組合控制裝置用于調節水溫，防止出現過熱現象。
  Thermostat/High Limit Control
  Combination control allows adjustment of water temperature while preventing overheat protection.

• 通過的認證標準
  美國UL 174認證，1990美國電器節能法典(NAECA)認證，BOCA和美國采暖、制冷與空調工程師學會(ASHARE)90.1b-1992認證。所有型號均通過300 PSI試驗壓力和150 PSI工作壓力的檢測認證。
  Code Approvals
  Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

• 排污閥
  保護兒童，防腐排污閥。
  Drain Valve
  Child-resistant, corrosion-resistant drain valve.

　　采用堅固耐用的強力量具鋼材料，經過自動控制設備進行成型、軋制滾圓和焊接，確保Fused Ceramic Shield^TM（熔融陶瓷盾板）熱水器內膽接縫緊密結實。每個內膽都經過三重檢驗，確保沒有質量問題。

　　Heavy gauge steel is automatically formed, rolled and welded to assure continuous seams for the Fused Ceramic Shield^TM Tank Lining. Each Tank is triple tested to ensure quality.

　　原廠配件質量保證6年。

　　Original factory parts warranted for 6 years.

　　
　　如果需要完整的質量保證資料，請致電021-51002402向美國人熱水器公司中國公司咨詢書面質量保證書。
　　For complete warranty information consult the written warranty of American Water Heater Company at 021-51002402。

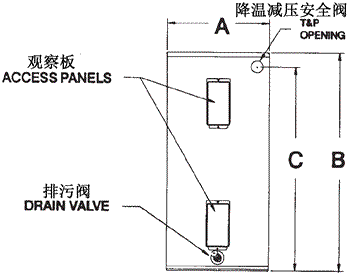

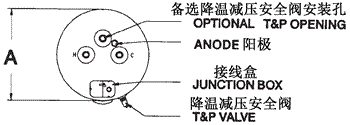

正視圖 FRONT VIEW	俯視圖 TOP VIEW
